Fanless Embedded Computer with Intel 12th Gen Core i5/i7 6 COM Ports Industrial PC Box for Edge Computing

Name: Fanless Embedded Computer with Intel 12th Gen Core i5i7 6 COM Ports Industrial PC Box for Edge Computing
Brand: SMATiPC
Price: 1 USD

Buy cheap Fanless Embedded Computer with Intel 12th Gen Core i5/i7 6 COM Ports Industrial PC Box for Edge Computing product

Brand Name : SMATiPC

Place of Origin : Guangdong, China

MOQ : 1

Model Number : IBOX-711

Certification : CE,Fcc, ROHS

Price : US $335-545

Payment Terms : T/T

Delivery Time : 5-8 Work Days

CPU Type : Intel N97, 12th gen Core i5/i7

Memory Slot : 1 x DDR4 3200 SODIMM, Max 32 GB

Storage Options : 1 x M.2 slot, 1 x 2.5-inch HDD/SSD

Display Ports : 1x VGA, 1x HD

USB Ports : 6x USB (4x USB3.0, 2x USB2.0)

COM Ports : 6x COM (4x RS485, 2x RS232)

LAN Ports : 2x Gigabit Ethernet

GPIO Port : 10P Phoenix terminal (4 in 4 out)

Expansion Slots : 1x PCIe x8, 1x PCI (32-bit)

Power Input : DC 12~24V

Operating Temperature : 0℃ ~ +50℃ (HDD), -20℃ ~ +60℃ (SSD)

Humidity Range : 5% ~ 95% non-condensing

Dimensions : 216 x 185 x 115 mm

Material : Aluminum Alloy

Contact Now

Fanless Embedded Computer with Intel 12th Gen Core i5/i7 6 COM Ports Industrial PC Box for Edge Computing

Fanless Industrial Computer - High-Performance Edge Computing Solution

Key Specifications

Processors: Intel 10th/12th Gen Core i5/i7, N97
Memory: DDR4 3200MT/s (MAX 32GB)
Storage: 1× mSATA + 1× 2.5" HDD/SSD
Expansion: 1× PCIe x8 slot + 1× PCI slot (32-bit)
Connectivity: 6× COM (4× RS485) with optional WiFi/3G/4G
Power: 12-24V DC with reverse-connection protection
Operating Systems: Windows 10/11, Linux

Industrial Applications

Industrial Automation (PLC, HMI) Edge Computing (AI inference, data acquisition) Outdoor & Harsh Environments Transportation & Smart City (ITS, surveillance) Noise-sensitive Areas

Key Advantages

Reliability: Fanless design extends operational lifespan
Versatility: Balanced I/O for factory and field deployment
Future-proof: 12th Gen Intel Core supports AI/ML workloads

Technical Specifications

Model	IBOX-711
Color	Blue + grey (custom colors available)
Material	High-quality all-aluminum alloy, surface hard anodized
Processor Options	• Intel N97 (4 Core 4 threads, 6MB cache, Max Turbo 3.6 GHz) • Intel i5 1035G1 (4 Core 8 threads, 6MB cache, Max Turbo 3.6 GHz) • Intel i5 1235U (10 core 12 threads, 12MB cache, Max Turbo 4.4 GHz) • Intel i7 1255U (10 core 12 threads, 12MB cache, Max Turbo 4.7 GHz)
BIOS	AMI EFI BIOS
Memory	1 x DDR4 3200 SODIMM RAM slot, Max 32 GB
Storage	1 x M.2 slot, 1 x 2.5-inch HDD or SSD
Display Chip	Intel® UHD Graphics / Intel® Iris® Xe Graphics
Display Ports	1x VGA, 1x HD

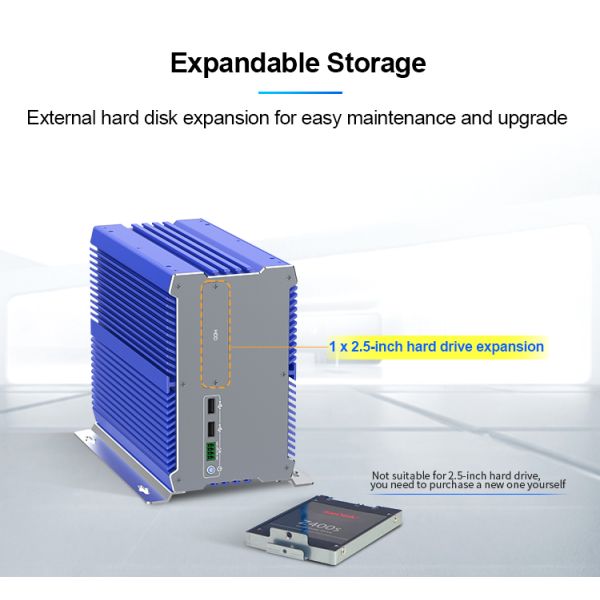

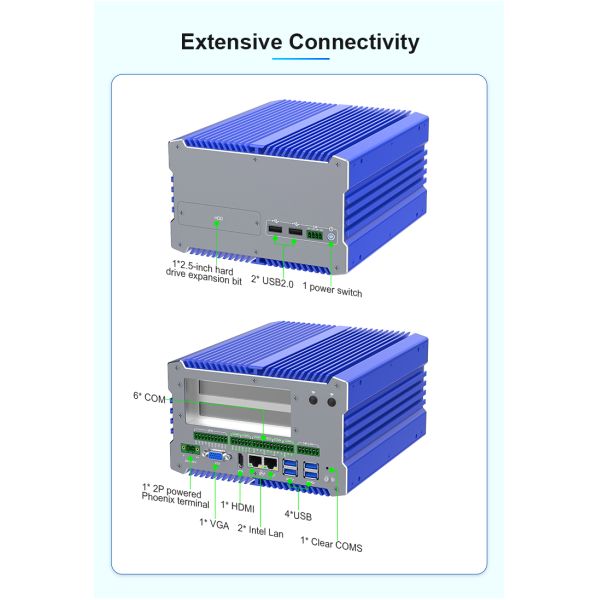

Front I/O	2 x USB2.0, 1 x Power Button, 1 x 2.5-inch hard drive expansion
Rear I/O	4 x USB3.0 (N97: 3x USB3.0, 1 x USB 2.0) 2 x Intel Gigabit Ethernet 1 x VGA, 1 x HD 1 x 2P powered Phoenix terminal 1x Clear CMOS button 6 x COM (COM1-4 RS485, COM5-6 RS232) 10P Phoenix terminal 4 in 4 out GPIO (with optical coupler isolation, 9-24V wide voltage) 6P Phoenix Terminal (Customizable Pin)
Expansion I/O	1 x M.2 2280 M-key slot (SATA) 1 x MINI PCIE (3G/4G, Core CPU support PCIE & USB, N97 only USB signal), with SIM card holder 1 x MINI PCIE slot (support WIFI/BT, Support PCIE & USB) Optional Port: Audio, expandable 4-in-4-out GPIO
Expansion Slot	1 x PCIE X8 slot (N97 1X, 1035G1/1235U/1255U: 4X) + 1 PCI slot (32-bit)
Network	N97: 2 x Intel i210 10/100/1000M Ethernet 1035G1/1235U/1255U: 1 Intel i210-AT, 1 i219-V Gigabit Ethernet
Other Functions	Auto Power on, Timing Boot, Wake On Lan, PXE, Watchdog (0~255 levels)
Power Supply	DC 12~24V wide voltage input, with positive and negative reverse connection protection

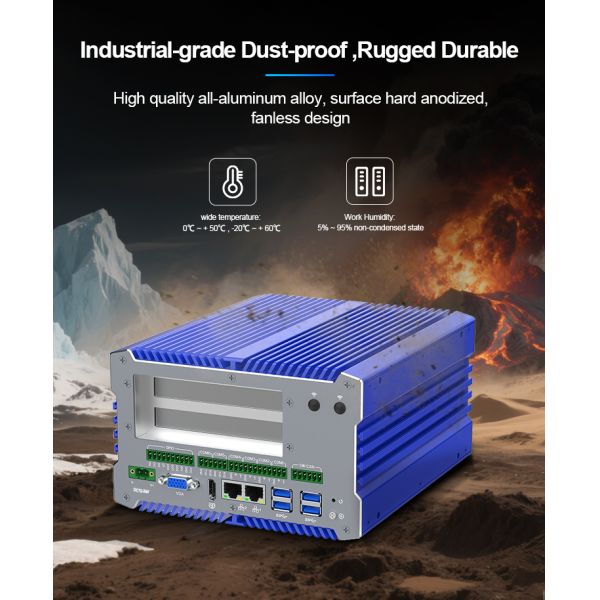

Operating Temperature	0℃ ~ +50℃ (commercial HDD), -20℃ ~ +60℃ (industrial SSD), with surface air flow
Operating Humidity	5% ~ 95% non-condensing

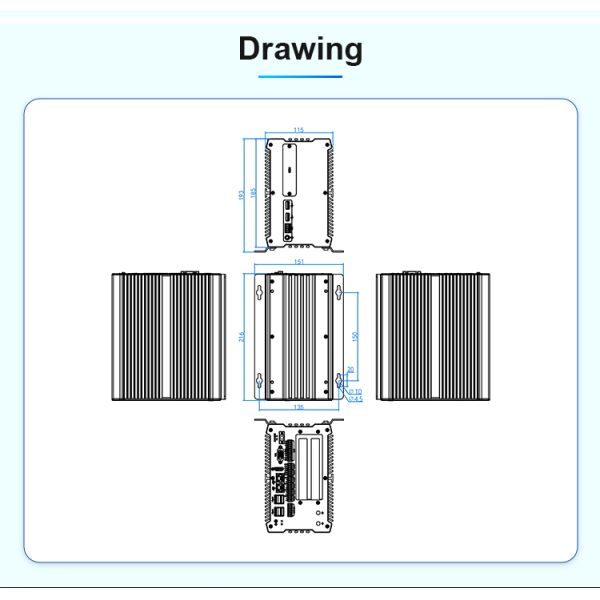

Dimensions	216 x 185 x 115 mm [Wall mount not included]
Weight	4 kg [Wall mount not included]
Applications	Industrial Automation, Medical, Logistics & Transportation, Warehousing, Machine Vision

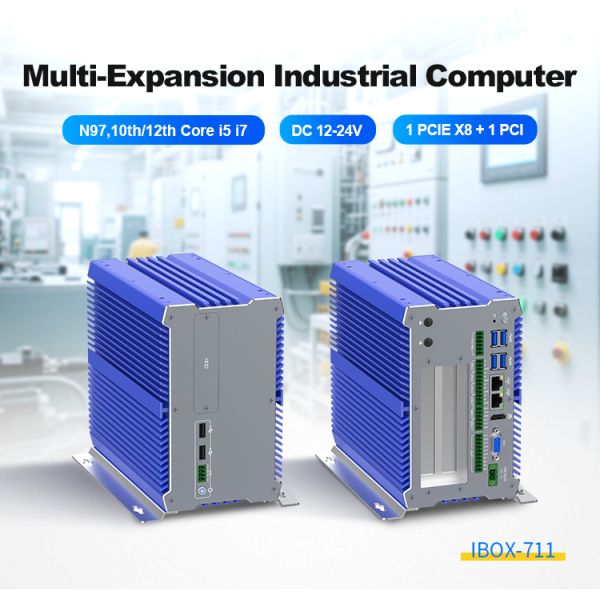

Product Images

Fanless Embedded Computer with Intel 12th Gen Core i5/i7 6 COM Ports Industrial PC Box for Edge Computing

Shipping & Delivery Information

Delivery Time: 1-3 days for samples, 15 working days for large quantities

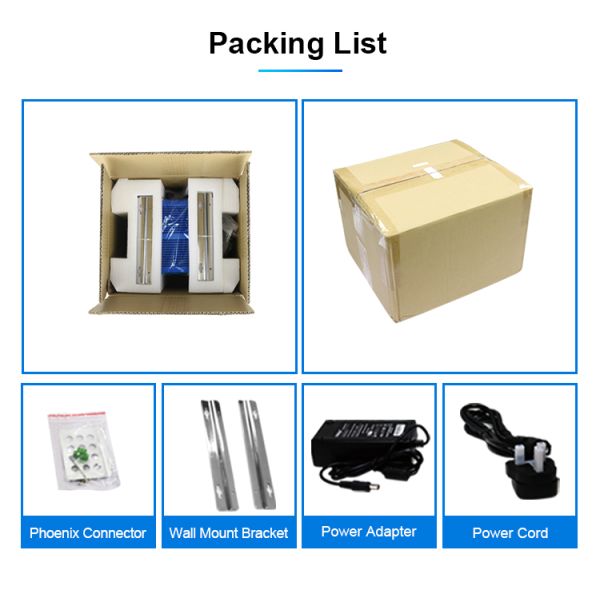

Packaging: Each unit in individual neutral box

Shipping Methods: DHL, Fedex, UPS for small quantities; air or sea freight for large quantities

Customization Services

Need custom OEM/ODM solutions? Contact us for personalized configuration options and competitive pricing.
